Brand	Fulian	Type	Sewing machine
Product name	Computer synchronization car	Stitch type	Quilting machine
Model	FL-0303-D3	Number of stitches	Single needle
Number of machine heads	Single head	Number of lines	Double line
Scope of application	Thickener	Driving form	Electric
Applicable Institute	Factory	Degree of automation	Semi-automatic
Packing volume	630250560mm	Packing weight	48kg

Technical features:

The machine adopts connecting rod type up and down feeding mechanism and presser foot alternate lifting mechanism to ensure smooth feeding; adopts large rotary shuttle thread hook to reduce the number of bottom line replacement; automatic lubrication device has the advantages of low tension sewing; presser foot lifting shaft and presser foot swing shaft adopt sealed automatic lubrication; the back cover plate adopts heightening design to effectively prevent oil leakage; the machine has good seam thickness performance and increases working efficiency, Reduce labor costs.

Applicable object:

General sewing (extra thick sewing); used for leather, artificial leather, canvas, cushion, sofa, luggage, etc.

Prev:Computer chain sewing machine

Next:Computer package cutting integrated flat car with knife

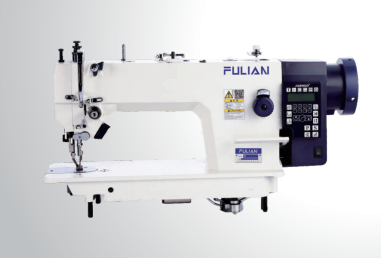

Direct drive thick material double synchronous sewing machine（FL-0303）
